• Test voltage up to 30 kV for air and contact discharge

• Discharges up to 25 Hz

• 80 easy-to-change R/C-networks and tips

• Switchable Bleed-Off function

• Built-in activity log

• AC mains supply and DC supply

• Battery tested to 30,000 pulses @30 kV

• Built -in selftest function

• USB-interface

• Contact Discharge Voltage Range: 200 V - 30,000 V ± 5 %

• Air Discharge Voltage Range: 200 V - 30,000 V ± 5 %

• Outputs: 0.8 ns +/- 25%, 0.7 ns - 1 ns

• Pre-Programmed IEC Levels: Yes

• Polarity: Pos / Neg

• Resolution: 100 V steps

• Holding Time: More than 5 sec

• Weight: 6.5 kg (Base Station) 1,250 g (discharge gun)

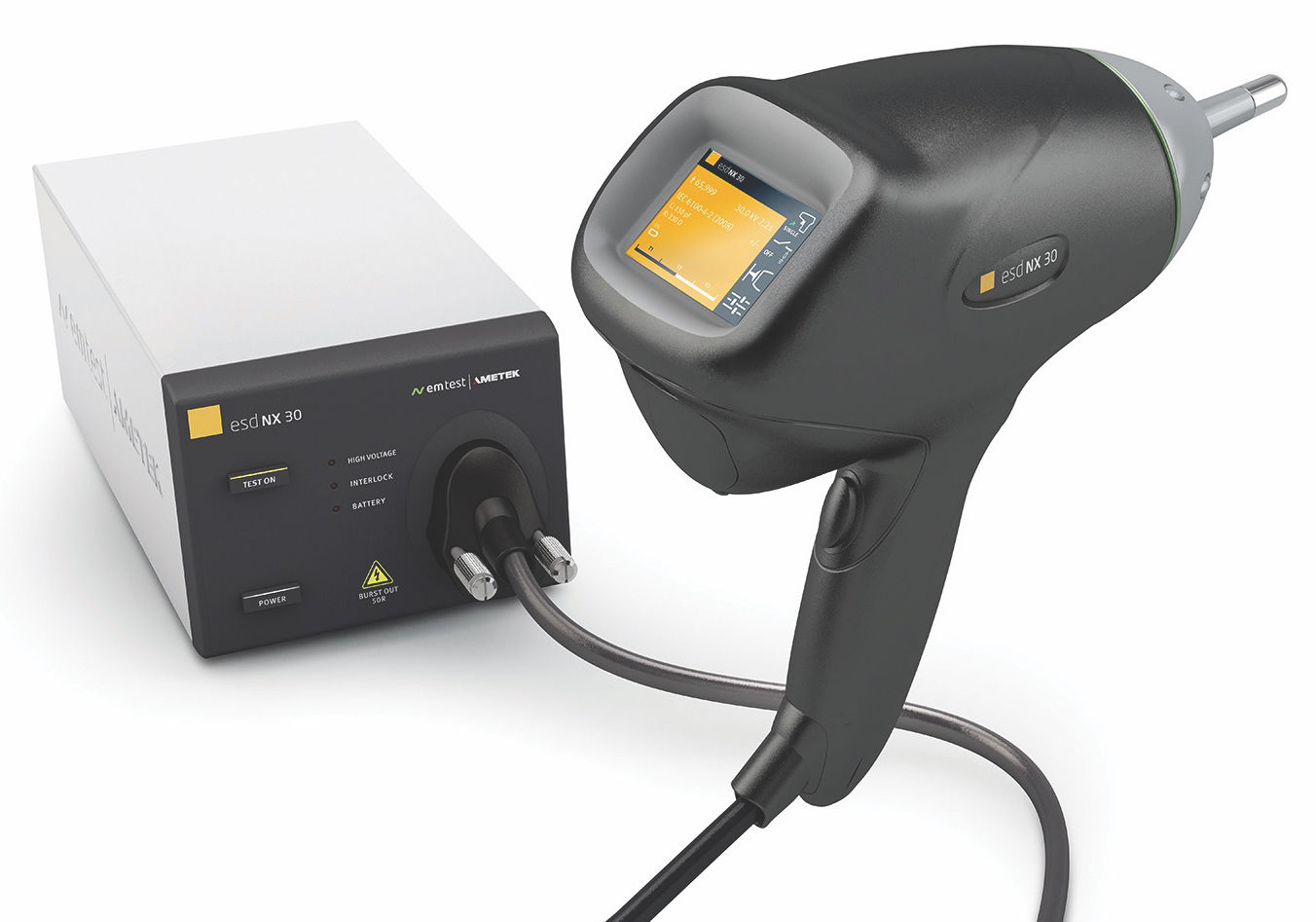

The EM Test NX 30 consists of a power supply unit and the discharge gun, operated from the discharge gun. It generates electrostatic discharges up to 30 kV in both air and contact discharge mode. The discharge tips can easily be changed. The discharge networks can be easily changed as they are plugged into the discharge gun. The actual discharge network in use is recognised by the controls and indicated in the display. The esd NX30 is either mains supplied or supplied by a DC source. Even battery powered operation is possible. Battery operation becomes relevant for testing e.g. as per DC-11224 or VW TL 824 66, ESD Operating Test, where the ground of the ESD generator is connected to the Field Coupling Plane and the Horizontal Coupling plane but not directly to the Reference Ground Plane. Additionally, a fiber optic link is offered as an option to communicate with the esd NX30 separating the sensitive computer from the test set-up and to avoid ground loops.

Items Included - Base Model

• Discharge tips for AD and CD

• 25 mm discharge sphere

• Grounding lead 2 m

• Test certificate

• user manual

• high voltage base unit with - built-in battery pack -

• 150 pF/330 Ohm discharge network

• carrying case

Additional Items Included - Automotive Package

• ISO 10605 discharge networks

• 150 pF/2000 ohm

• 330 pF/2000 ohm

• 330 pF/330 ohm

• 150 pF/330 Ohm
